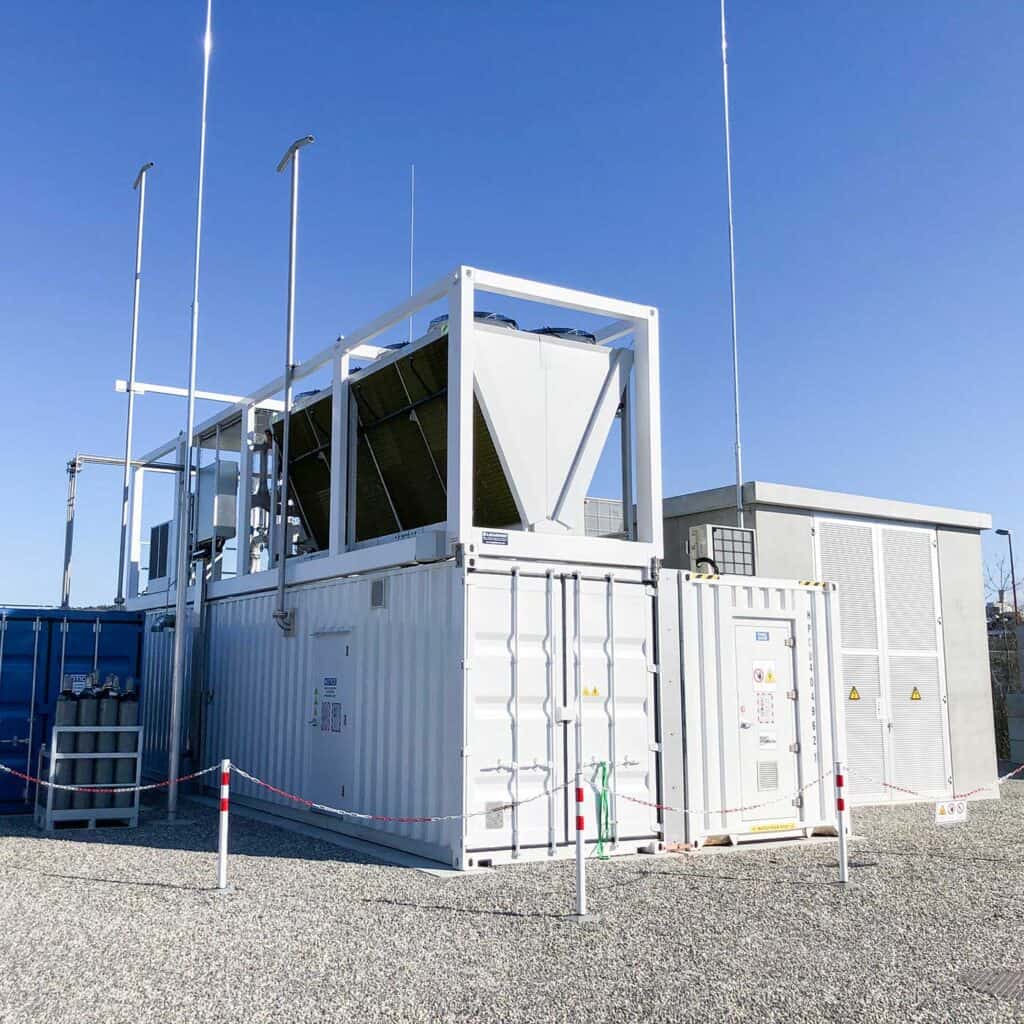

The first commercial plant for producing green hydrogen was put into operation at the run-of-river power plant from Alpiq in Niedergösgen in the first half of 2020.
With an output of 2 MW, it is still among the largest plants in Switzerland for the production of green hydrogen for commercial use in emission-free heavy transport. The facility in Niedergösgen can produce up to 300 tons of green hydrogen per year, ensuring the annual consumption of around 40–50 fuel cell electric trucks or 1,700 fuel cell electric cars. Three swap containers can be filled with 350 kg of green hydrogen per day.
Further information: hydrospider.ch
Technical Data
| PEM Electrolysis | |
|---|---|
| Supplier | NEL ASA |
| Type | Proton Exchange Membrane (PEM) |
| Output | 400 Nm3/h resp. 36 kg/h |
| Electrical Power (Full Load) | 4.7 kWh/Nm3 |
| Outlet Pressure | 30 bar |
| Purity | 99.9998 % |
| Hydrogen Storage and Transport | |
|---|---|
| Supplier | UMOE |
| Working Pressure | 350 bar |
| Capacity | 350 kg H2 |
| Stationary or Mobile | Mobile ADR-Container |
H2 Energy Services – a reliable, experienced partner
Design Plant incl. Building Application. Obtaining offers, defining interfaces, QS, developing building applications
Execution Planning. Detailed planning of network development, electrical, piping and control with partners
Execution & Commissioning. Supporting the construction management / client with delivery and installation of the H2 components, commissioning, certification and acceptance
